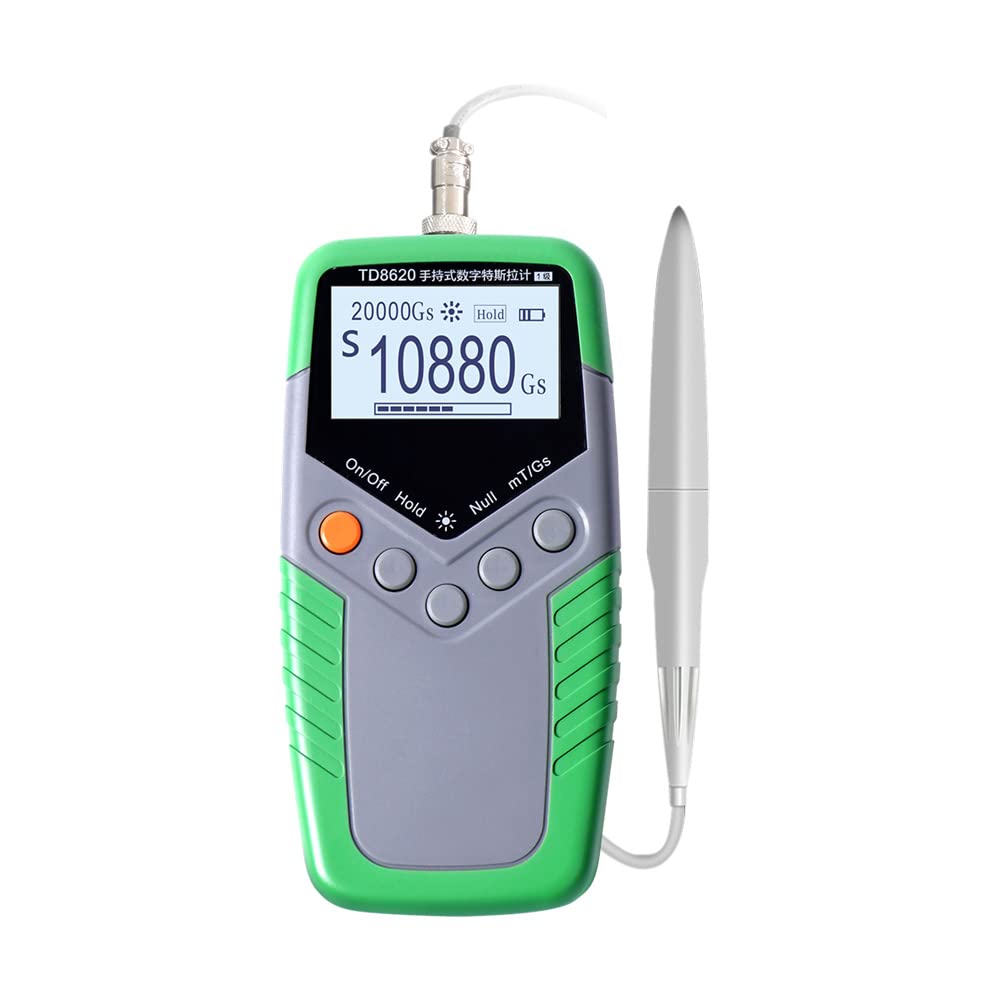

Class 5 Accuracy Permanent Magnet Gauss Meter Handheld Digital Magnetic Flux Meter Surface Magnetic Field Test

Product Description: 1.The design of TD8620 hand-held digital Tesla meter follows the IEC-61010-1 safety standard, and conforms to the national verification regulation of JJG242-1995 Tesla meter. 2.TD8620 hand-held digital Tesla meter adopts not only the high-sensitivity Hall sensor and high-resolution A / D conversion chip, but also the popular single-chip computer technology and digital filtering technology . 3.It has the advantages of high sensitivity, stable reading, low power consumption , and light weight. The measurement range is 0-2000 Mt, and the basic accuracy is ±1%. It has the characteristics of automatic zero, automatic measurement range, keeping of maximum / minimum values, etc. Model Number: TD8620-5 Power: Electronic, Electronic, 9 V battery Operating (not incluced) Range: 200 mT,2000 mT Accuracy: 0~1000 mT:±2% 1000 mT ~ 2400 mT:±5% Scope: Maximum calibration field 2400 mT, 24 kiloguass Resolution: 10 μT Display: 4 digit(in Decimal) Hall probe: Transverse probe , with 1 m cable Environment: 0℃ ~ 50℃ Storage temperature: -20℃ ~ 50℃

• Dedicated to measuring the surface flux density of permanent magnet materials B, range: 0 to 2400 mT
• The value can be switched by one button: mT (mite) or G (gauss).
• With automatic zero and auto range, and maximum hold function.
• With backlight adjustment, power display and automatic shutdown function.
• Light weight and low power consumption.
