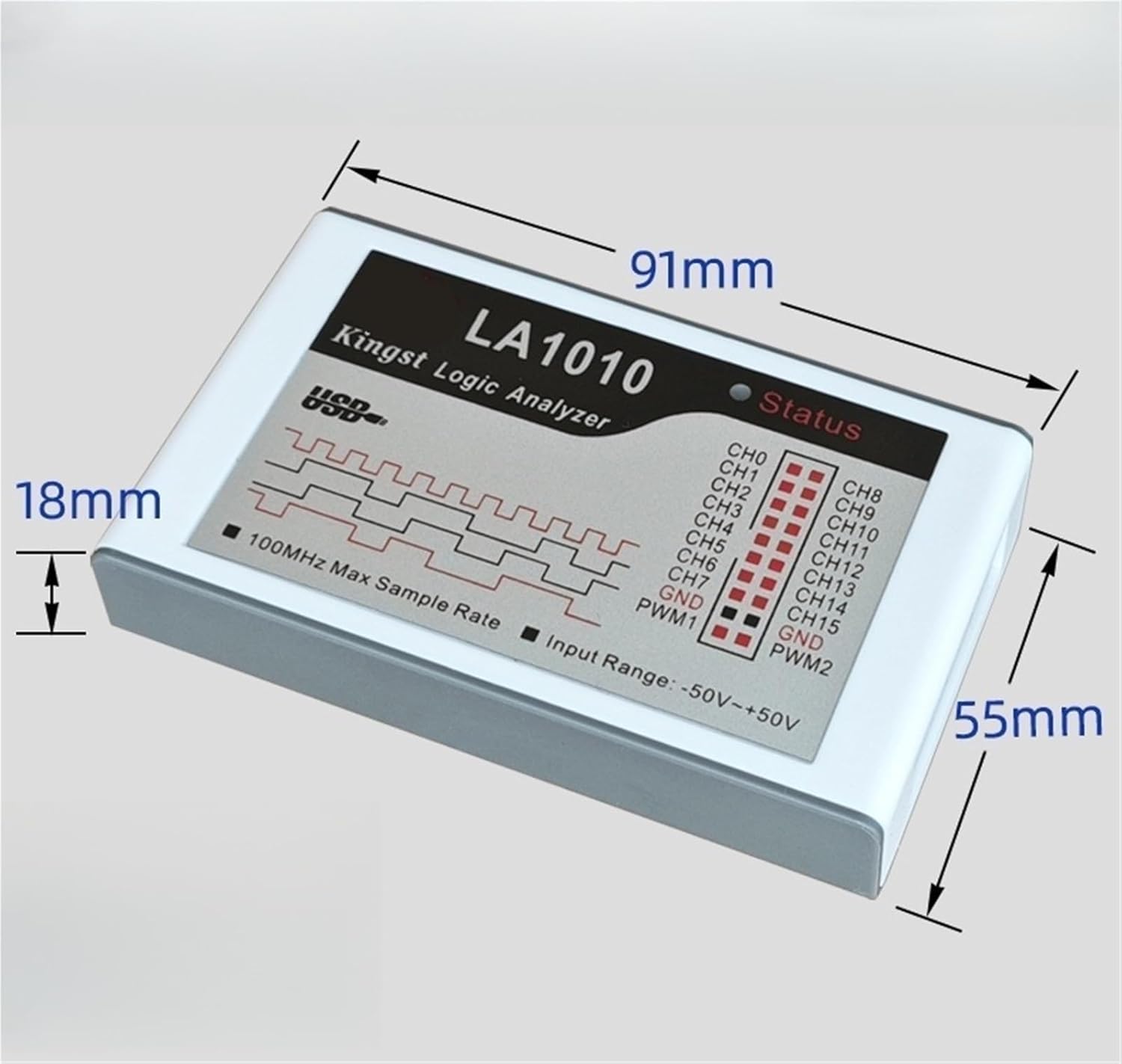

1pc LA1010 16CH USB Logic Analyzer MCU ARM FPGA Debug Tool
4.0 (102 items)
Limited Time SaleUS$198.94 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211161498 | Release Date | 2026/04/04 | List Price | US$132.62 | Model Number | 211161498 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Logic Analyzers1pc LA1010 16CH USB Logic Analyzer MCU ARM FPGA Debug Tool.Input channels: 16 MAX.Max sampling rate: 100 m.Measurement bandwidth: 20 m.Min pulse width captured: 20 ns.Max sampling depth: 10 G / channel.Input voltage range: -50 ~ +50 V.Input impedance: 220 K, 12 pF.Adjustable threshold voltage: -4 ~ +4 V, step: 0.01 V.PWM channels: 2.PWM frequency range: 0.1 ~ 10 MHz.PWM frequency adjust step: 10 ns.PWM pulse width step: 10 ns.PWM output voltage: +3.3 V.PWM output impedance: 50 .Standby current: 100 mA.Max operating current: 150 mA.Dimensions: 95 x 55 x 23 mm
- Logic Analyzers
- 1pc LA1010 16CH USB Logic Analyzer MCU ARM FPGA Debug Tool
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | ZDAVSFR |
| Item model number | ZDAVSFR |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
